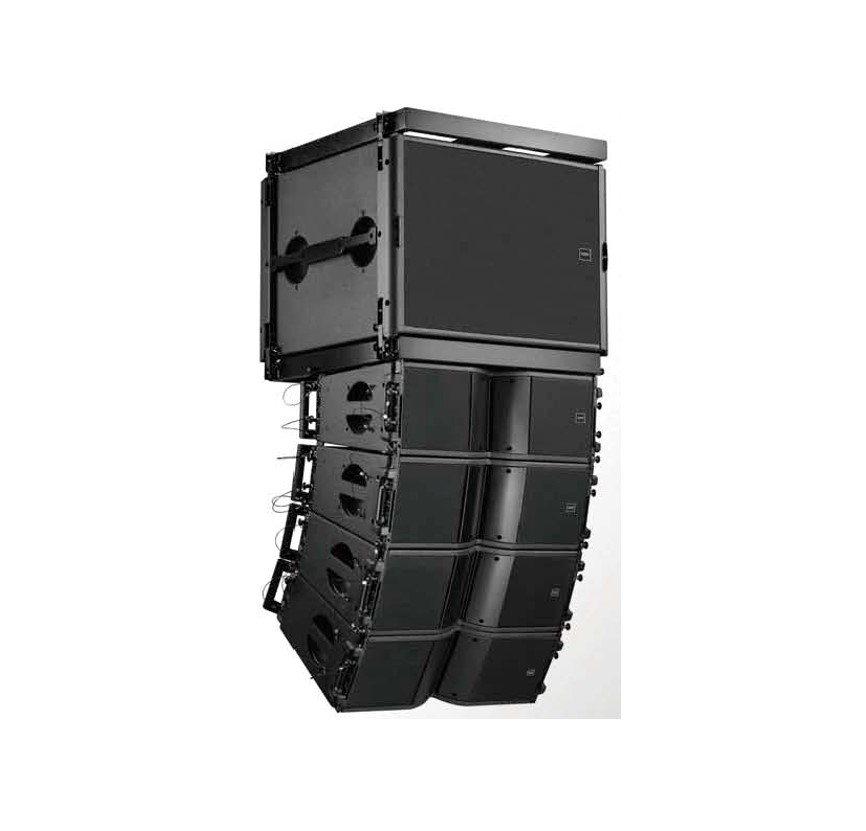

| 제품명 | Dual 10” Active Line Array Speaker |
| 모델명 | LA-102-P, LA-1081S-P |
▶ Dual 10’’ line array, compact size, light weight.
▶ Can be passive and active.
▶ Neodymium high driver makes sound clear.
▶ Two way line array system.
▶ Trapezoidal box structure, the gap between cabinets is minimized.
▶ 18mm birch plywood cabinet with . environmental paint.
▶ Proprietary rigging system.
|
Type |
Double 10” active line array speaker |
|
Unit composition |
LF: 2x10” |
|
HF: 1x3" |
|
|
Frequency Response |
60Hz ~ 18KHz |
|
Amplifier Design |
CLASS D with FIR and DSP |
|
Power Rating |
700W |
|
Amplifier Power |
1200W/8Ω |
|
SPL |
138dB |
|
Coverage Angle |
110˚(H) x 15˚(V) |
|
Connector |
2 x Speakon NL4MP |
|
Size(HxWxD) |
300 x 780 x 439mm |
|
Weight(Kg) |
39.4Kg |
|
Type |
Single 18” Active subwoofer |
|
Unit composition |
LF: 1x18’ |
|
Frequency Response |
50Hz ~ 450Hz |
|
Amplifier Design |
CLASS D with FIR and DSP |
|
Power Rating |
800W |
|
Amplifier Power |
1200W/8Ω |
|
SPL |
136dB |
|
Coverage Angle |
- |
|
Connector |
2 x Speakon NL4MP |
|
Size(HxWxD) |
559 x 830 x 708mm |
|
Weight(Kg) |
59.5Kg |
