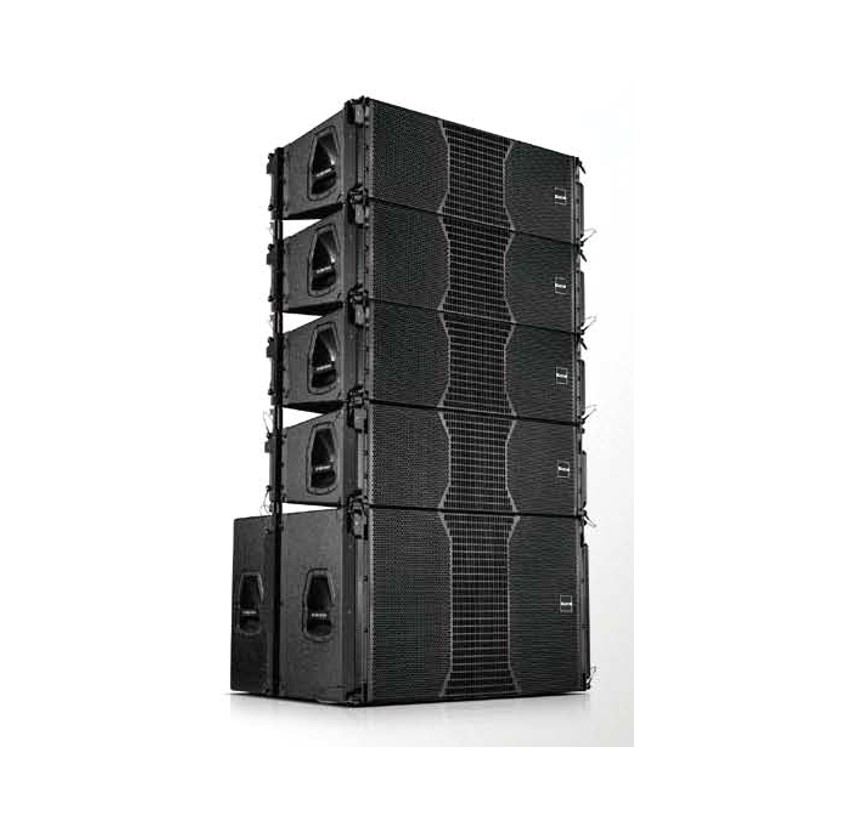

| 제품명 | Dual 10” Active 3-WAY Line Array Speaker |
| 모델명 | LV-102-P, LV-181S-P |
▶ 3 way line array speaker with all neodymium.
▶ The acoustic structure design of LV-102-P makes better low-frequency effect.
▶ MF and HF unit in coaxial installing , to achieve lowest distortion.
▶ 2 Neodymium high drivers provide high SPL.
▶ Different angles & easily hanging with precision aluminum alloy lifting system.
▶ LV-181S-P is a high-power, high SPL single 18-inch subwoofer in labyrinth structure.
▶ Premium Baltic birch cabinet with environmental and anti-scratch paint.
|
Type |
Double 10” Active 3 way line array |
|
Unit composition |
LF: 2x10”, MF: 1x8" |
|
HF: 2x1.75" |
|
|
Frequency Response |
90Hz ~ 18KHz |
|
Amplifier Design |
CLASS D with FIR and DSP |
|
Power Rating |
850W |
|
Amplifier Power |
1*1200W/8Ω |
|
SPL |
141dB |
|
Coverage Angle |
110˚(H) x 15˚(V) |
|
Connector |
2 x Speakon NL4MP |
|
Size(HxWxD) |
300 x 958 x 495mm |
|
Weight(Kg) |
47Kg |
|
Type |
Single 18” Active subwoofer |
|
Unit composition |
LF: 1x18’ |
|
Frequency Response |
30Hz ~ 450Hz |
|
Amplifier Design |
CLASS D with FIR and DSP |
|
Power Rating |
800W |
|
Amplifier Power |
1200W/8Ω |
|
SPL |
136dB |
|
Coverage Angle |
- |
|
Connector |
2 x Speakon NL4MP |
|
Size(HxWxD) |
550 x 955 x 750mm |
|
Weight(Kg) |
77Kg |
