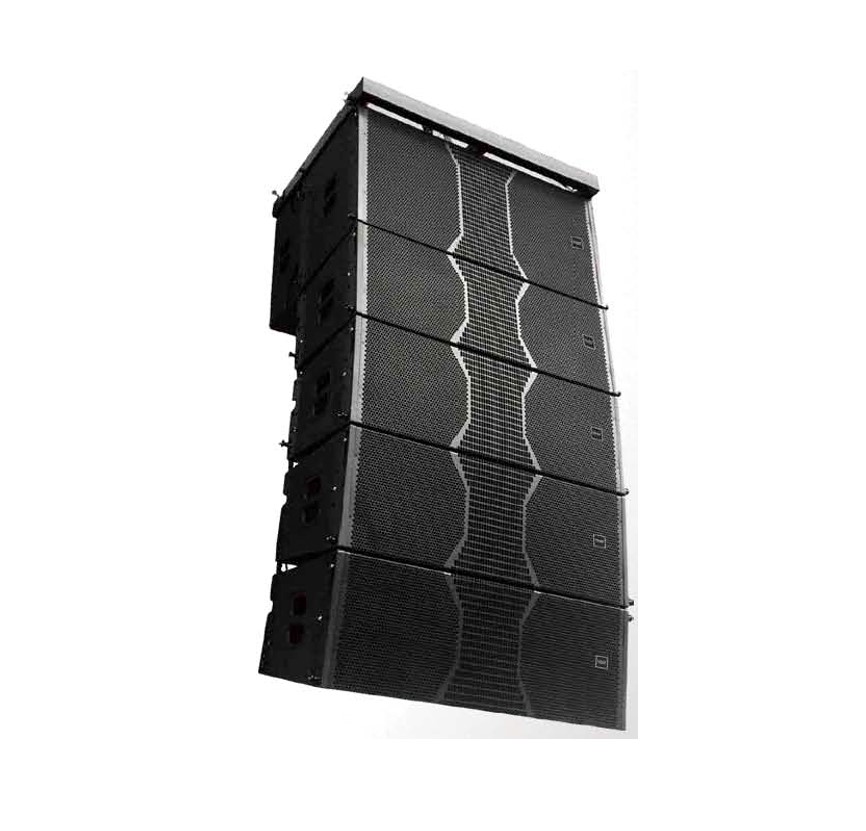

| 제품명 | Dual 10” Active 2-WAY Line Array Speaker |
| 모델명 | LI-102-P, LI-181S-P |
▶ Dual 10’’ line array, can be passive and active.
▶ The large-angle horn design makes the sound field radiation more uniform.
▶ Different angles & easily hanging.
▶ Safe and reliable speaker interface.
▶ LI-102-P is suitable for a variety of indoor and outdoor occasions
▶ 18mm birch plywood cabinet with environmental paint.
|
Type |
Double 8” active line array speaker |
|
Unit composition |
LF: 2x10” |
|
HF: 1x3" |
|
|
Frequency Response |
60Hz ~ 18KHz |
|
Amplifier Design |
CLASS D with FIR and DSP |
|
Power Rating |
700W |
|
Amplifier Power |
1200W/8Ω |
|
SPL |
138dB |
|
Coverage Angle |
110˚(H) x 15˚(V) |
|
Connector |
2 x Speakon NL4MP |
|
Size(HxWxD) |
865 x 309 x 483mm |
|
Weight(Kg) |
41.4Kg |
|
Type |
Single 18” Active subwoofer |
|
Unit composition |
LF: 1x18’ |
|
Frequency Response |
50Hz ~ 450Hz |
|
Amplifier Design |
CLASS D with FIR and DSP |
|
Power Rating |
800W |
|
Amplifier Power |
1200W/8Ω |
|
SPL |
136dB |
|
Coverage Angle |
- |
|
Connector |
2 x Speakon NL4MP |
|
Size(HxWxD) |
861 x 503 x 700mm |
|
Weight(Kg) |
70.4Kg |
